ViewPager Android

This article will demostrate how to add viewpager to your app for swipe gesture and populating your MainActivity with a pager and adapter holding your various fragments.

Create a new Application and open the activity_main.xml and add a TabLayout and ViewPager

activity_main.xml

 <?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <com.google.android.material.tabs.TabLayout
        android:id="@+id/tabs"
        android:layout_width="match_parent"
        android:layout_height="?attr/actionBarSize"
        app:tabGravity="fill"
        app:tabMode="fixed" />

    <View
        android:layout_width="match_parent"
        android:layout_height="1dp"
        android:background="@color/purple_200" />

    <androidx.viewpager.widget.ViewPager
        android:id="@+id/viewpager"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</LinearLayout>

Next we will set up our Fragments. For this demo i will create 3 seperate fragments Home, Profile and About. Create a new package and name it fragments then add 3 fragments.

HomeFragment.kt

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import com.example.viewpagerdemo.R

private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

class HomeFragment : Fragment() {
    private var param1: String? = null
    private var param2: String? = null

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        arguments?.let {
            param1 = it.getString(ARG_PARAM1)
            param2 = it.getString(ARG_PARAM2)
        }
    }

    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        return inflater.inflate(R.layout.fragment_home, container, false)
    }

    companion object {
        @JvmStatic
        fun newInstance() =
            HomeFragment().apply {

            }
    }
}

fragment_home.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".fragments.HomeFragment">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="40sp"
        android:gravity="center"
        android:text="Home Fragment" />

</FrameLayout>

ProfileFragment.kt

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import com.example.viewpagerdemo.R

private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

class ProfileFragment : Fragment() {
    private var param1: String? = null
    private var param2: String? = null

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        arguments?.let {
            param1 = it.getString(ARG_PARAM1)
            param2 = it.getString(ARG_PARAM2)
        }
    }

    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        return inflater.inflate(R.layout.fragment_profile, container, false)
    }

    companion object {
        @JvmStatic
        fun newInstance() =
            ProfileFragment().apply {

            }
    }
}

fragment_profile.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".fragments.ProfileFragment">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="40sp"
        android:gravity="center"
        android:text="Profile Fragment" />

</FrameLayout>

AboutFragment.kt

import android.os.Bundle
import androidx.fragment.app.Fragment
import android.view.LayoutInflater
import android.view.View
import android.view.ViewGroup
import com.example.viewpagerdemo.R

private const val ARG_PARAM1 = "param1"
private const val ARG_PARAM2 = "param2"

class AboutFragment : Fragment() {
    private var param1: String? = null
    private var param2: String? = null

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        arguments?.let {
            param1 = it.getString(ARG_PARAM1)
            param2 = it.getString(ARG_PARAM2)
        }
    }

    override fun onCreateView(
        inflater: LayoutInflater, container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View? {
        return inflater.inflate(R.layout.fragment_about, container, false)
    }

    companion object {
        @JvmStatic
        fun newInstance() =
            AboutFragment().apply {

            }
    }
}

fragment_about.xml

 <?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".fragments.AboutFragment">

    <TextView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="40sp"
        android:gravity="center"
        android:text="About Screen" />

</FrameLayout>

Next lets create our custom adapter class 'PagerAdapter' in a new package 'adapter'.

PagerAdapter.kt

import androidx.fragment.app.Fragment
import androidx.fragment.app.FragmentManager
import androidx.fragment.app.FragmentPagerAdapter


class PagerAdapter(manager: FragmentManager) : FragmentPagerAdapter(manager) {
    private val mFragmentList: ArrayList<Fragment> = ArrayList()
    private val mFragmentTitleList: ArrayList<String> = ArrayList()

    override fun getItem(position: Int): Fragment {
        return mFragmentList.get(position)
    }

    override fun getCount(): Int {
        return mFragmentList.size
    }

    fun addFragment(fragment: Fragment, title: String) {
        mFragmentList.add(fragment)
        mFragmentTitleList.add(title)
    }

    override fun getPageTitle(position: Int): CharSequence? {
        return mFragmentTitleList[position]
    }
}

Now lets open the MainActivity and setup the tabs and viewpager adapter.

MainActivity.kt

import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
import androidx.viewpager.widget.ViewPager
import com.example.viewpagerdemo.adapter.PagerAdapter
import com.example.viewpagerdemo.fragments.AboutFragment
import com.example.viewpagerdemo.fragments.HomeFragment
import com.example.viewpagerdemo.fragments.ProfileFragment
import com.google.android.material.tabs.TabLayout

class MainActivity : AppCompatActivity() {

    private lateinit var viewpager: ViewPager
    private lateinit var tabs: TabLayout

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        initViews()

        setupViewPager()
    }

    private fun initViews() {
        tabs = findViewById(R.id.tabs)
        viewpager = findViewById(R.id.viewpager)
    }

    private fun setupViewPager() {

        val adapter = PagerAdapter(supportFragmentManager)

        val homeFragment: HomeFragment = HomeFragment.newInstance()
        val profileFragment: ProfileFragment = ProfileFragment.newInstance()
        val aboutFragment: AboutFragment = AboutFragment.newInstance()

        adapter.addFragment(homeFragment, "Home")
        adapter.addFragment(profileFragment, "Profile")
        adapter.addFragment(aboutFragment, "About")

        viewpager.adapter = adapter
        tabs.setupWithViewPager(viewpager)
    }
}

Thats it we all set. One last thing is to set the parent theme to NoActionBar so our app is in full screen with no toolbar (Unless u prefer to have one).

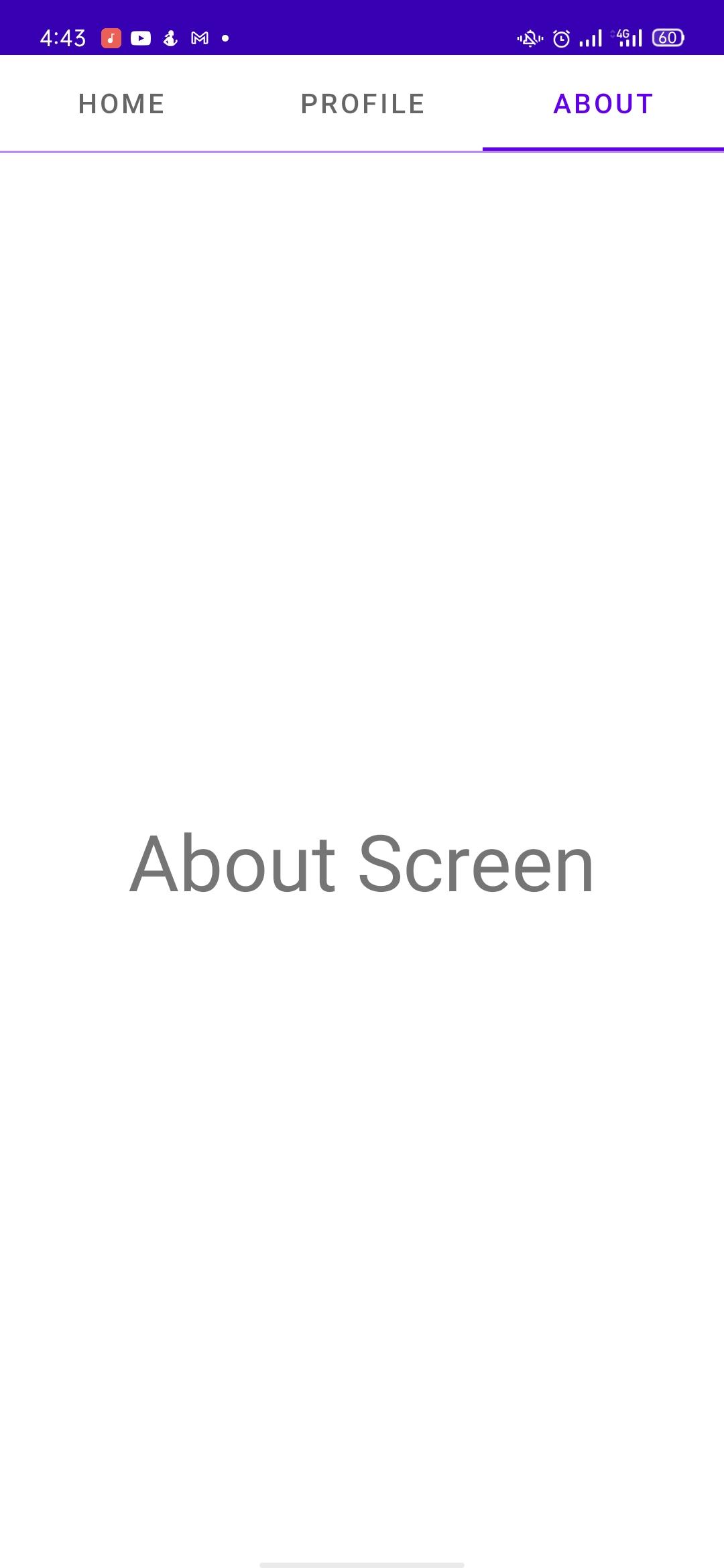

Run App.....
