Banker's Algorithms in Operating System

Algorithm Introduction

In a multiprogramming environment, several threads may compete for a finite number of resources. A thread requests resources; if the resources are not available at that time, the thread enters a waiting state. Sometimes, a waiting thread can never again change state, because the resources it has requested are held by other waiting threads. This situation is called a deadlock. Generally speaking, we can deal with the deadlock problem in one of three ways:

  • We can ignore the problem altogether and pretend that deadlocks never occur in the system. Called Deadlock Prevention.
  • We can use a protocol to prevent or avoid deadlocks, ensuring that the system will never enter a deadlocked state. Called Deadlock Avoidance.
  • We can allow the system to enter a deadlocked state, detect it, and recover. Called Deadlock Dectection & Recovery.
Banker's algorithm is deadlock avoidance type of algorithm.The name was chosen because the algorithm could be used in a banking system to ensure that the bank never allocated its available cash in such a way that it could no longer satisfy the needs of all its customers. When a new thread enters the system, it must declare the maximum number of instances of each resource type that it may need. This number may not exceed the total number of resources in the system. When a user requests a set of resources, the system must determine whether the allocation of these resources will leave the system in a safe state. If it will, the resources are allocated; otherwise, the thread must wait until some other thread releases enough resources.

Data structure for algorithm

  1. m: the number of resource types. Resource types include R1,R2,...,RmR_{1},R_{2},...,R_{m}
  2. n: the number of threads. Threads are P1,P2,...,PnP_{1},P_{2},...,P_{n}
  3. Available: the vector of length m indicates the number of available resources of each type. For example, if Available[j]=kAvailable[j] = k, then kk instances of resource type RjR_{j} are available.
  4. Max: An n×mn \times m matrix defines maximum demand of each thread. If Max[i][j]=kMax[i][j] = k, then thread PiP_{i} request at most k instances of resource type RjR_{j}.
  5. Allocation: An n×mn \times m matrix defines the number of resources of each type currently allocated to each thread. If Allocation[i][j]=kAllocation[i][j] = k, then thread PiP_{i} is currently allocated k instances of resource type RjR_{j}.
  6. Need: An n×mn \times m matrix indicates the remaining resource need of each thread. If Need[i][j]=kNeed[i][j] = k, then thread PiP_{i} may need kk instances of resource type RjR_{j} to complete its task. Note that Need[i][j]=Max[i][j]Allocation[i][j]Need[i][j] = Max[i][j] - Allocation[i][j].

What is Resource-Allocation State?

Resource-Allocation State is defined by the number of instances of resources :

  • available in the system
  • allocated for threads
  • maximum for each thread
The State is safe when:
  • The system can allocate resources to each thread (up to its maximum) in some order and still avoid a deadlock.
  • Exists state is safe.
  • A sequence of threads is a safe sequence for the current allocation state.

For example:
Suppose that, system has 12 resources. At time t0,Allocation(P0,P1,P2)=(5,2,2)t_{0}, Allocation(P_{0},P_{1},P_{2}) = (5,2,2), Available=12(5+2+2)=3Available = 12 - (5+2+2) = 3 resources.

Maximum Needs Current Needs
P0P_{0} 10 5
P1P_{1} 4 2
P2P_{2} 9 7

At time t0t_{0}, system is in safe state. Because, the sequence <P1,P0,P2><P_{1},P_{0},P_{2}> satifies the safety condition. With Available=3Available = 3 thread P1P_{1} can immediately be allocated all its resources and then return them, Available=3+2=5Available = 3 + 2 = 5; then thread P0P_{0} can get all its resources and return them, Available=5+5=10Available = 5 + 5 = 10; and finally thread T2 can get all its resources and return them.
Suppose that, at time t1t_{1} ,thread P2P_{2} requests and is allocated one more resource. At this point, only thread P1P_{1} can be allocated all its resources. When it returns them, the system will have only four available resources. Since thread P_{0) is allocated five resources but has a maximum of ten, it may request five more resources. If it does so, it will have to wait, because they are unavailable. Similarly, thread P2P_{2} may request six additional resources and have to wait, resulting in a deadlock. In this case, system go from safe state to unsafe state.

Safety algorithm

In this algorithm, we use vector. Consider vector X and Y. We say X<=YX<=Y if and only if X[i]<=Y[i]X[i] <= Y[i] for all i=1,2,...,ni=1,2,...,n. Each row of Max,Need,AllocationMax,Need,Allocation is a vector.

Safety algorithm check current state: safe or unsafe? Safety algorithm OR pseudo code:

Bool Safe(Current Resource-Allocation State) {
    Work <- Available;
    for(i: 1 -> n) Finish[i] = false;
    flag <- true;
    While(flag) {
        flag <- false;
        for(i: 1 -> n) {
            if(Finish[i] = false AND Need[i] <= Work) {
                finish[i] = true;
                Work <- Work + Allocation[i];
                flag = true;
            }//endif
        }//endwhile

        for(i: 1->n) if(finish[i] = false) return false;
        return true;
    }
}

Resource-Request Algorithm

Data Structure:
Request[i]: the request resource vector for thread PiP_{i}. If Request[i][j]=kRequest[i][j] = k then, thread PiP_{i} wants kk instances of resource type RjR_{j}.

Pseudo Code:

Void Resource-Request-Handling(Request[i]) {
    if(Request[i] > Need[i])
        Error; // has exceeded its maximum claim
    if(Request[i] > Available)
        Block; // don't enough, wait

    // Setup new state
    Available = Available - Request[i];
    Allocation[i] = Allocation[i] + Request[i];
    Need[i] = Need[i] - Request[i];

    // check safe or unsafe
    if(Safe(New Resource-Allocation State)) {
        Allocate(P[i]); // thread P[i] is allocated its resources
    }
    else {
        wait(P[i]); // P[i] wait

        // restore old state
        Available = Available + Request[i];
        Allocation[i] = Allocation[i] - Request[i];
        Need[i] = Need[i] + Request[i];
    }
}

Practice exercise

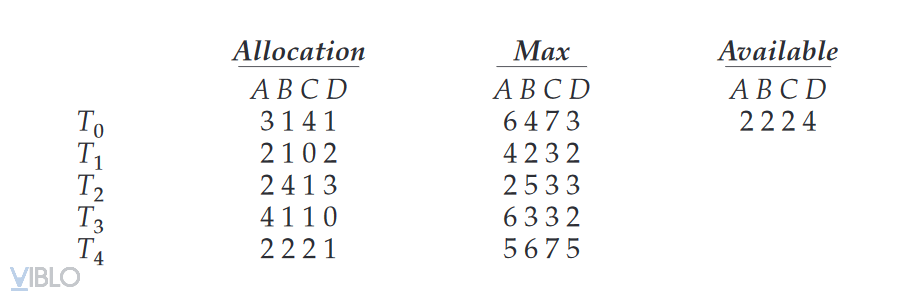

Consider the following snapshot of a system: banker exercise

  1. Illustrate that the system is in a safe state by demonstrating an order in which the threads may complete.
  2. If a request from thread T4T_{4} arrives for (2,2,2,4)(2, 2, 2, 4), can the request be granted immediately?

Solution:

  1. The content of NeedNeed matrix is difined to be MaxAllocationMax - Allocation and is as follow:
Need A B C D Allocation A B C D
T0T_{0} 3 3 3 2 T0T_{0} 3 1 4 1
T1T_{1} 2 1 3 0 T1T_{1} 2 1 0 2
T2T_{2} 0 1 2 0 T2T_{2} 2 4 1 3
T3T_{3} 2 2 2 2 T3T_{3} 4 1 1 0
T4T_{4} 3 4 5 4 T4T_{4} 2 2 2 1


This sequence of thread <T2,T3,T4,T0,T1><T_{2}, T_{3},T_{4}, T_{0}, T_{1}> satisfies the safety criteria. This state is safe.

  1. Request[4]=(2,2,2,4)Need[4]ANDRequest[4]=(2,2,2,4)Available.Request[4] = (2,2,2,4) \leq Need[4] AND Request[4] = (2,2,2,4) \leq Available. New state: Available=AvailableRequest[4]=(0,0,0,0)Available = Available-Request[4] = (0,0,0,0) \Rightarrow unsafeRequest[4]\Rightarrow Request[4] can't be granted immediately.

References.

  1. Abraham Silberschatz - Operating System Concepts 10th 2018
  2. Silde Chapter 2 - Thread Manage - Operating System, SoICT, HUST
