[Jmeter] Json Path Syntax

If you’re here, it’s probably because you need to extract variables from a Json response using JMeter.

Good news! You’re on the definitive guide to master JMeter Json Extractor. Complementary to our Rest API Testing Guide, you’ll learn everything you need to master Json Path Expressions.

Let’s go! And don’t panic, there is nothing difficult down there. 😎

Json format

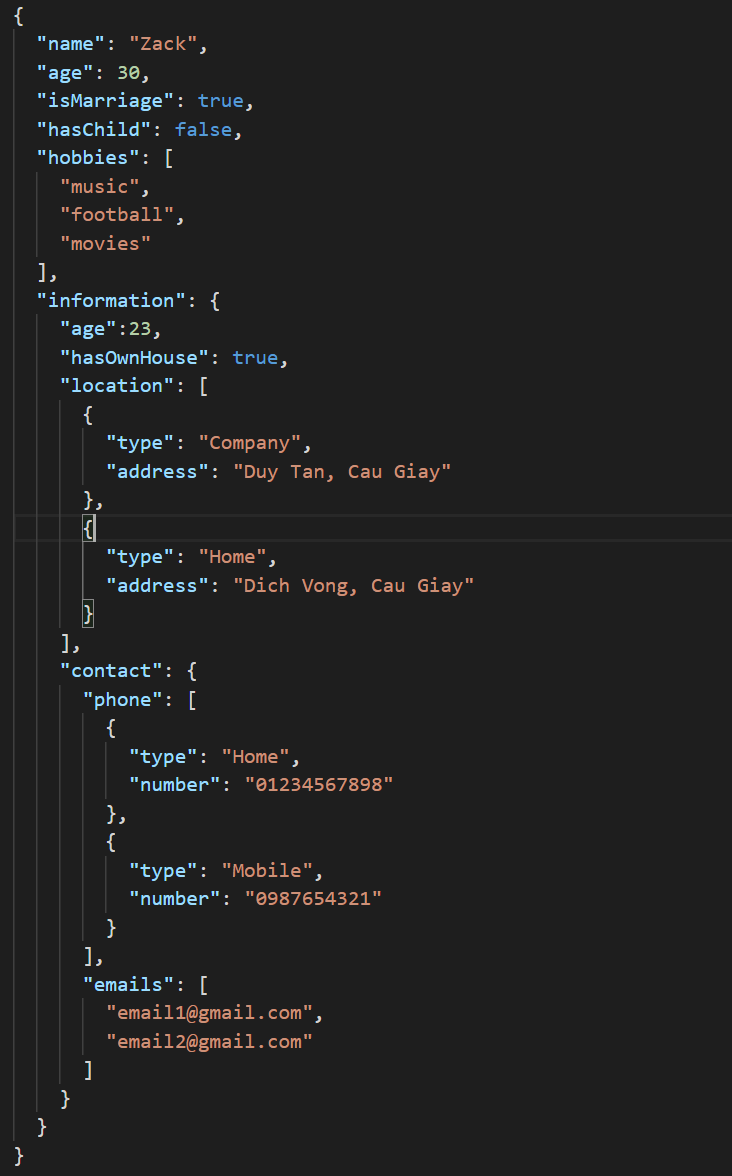

To get a better understanding of what Json is, here is an example Json document:


Json path syntax

1 JSON Path Description
2 $ The root object/element, all JSON Path usually start with this sign.
3 . Child operator, use this dot to move from parent to child.
4 [] Using these braces, include with the index to access the elements of an array. Note: index of array start from 0
5 * Wildcard. All objects/elements regardless their names.
6 .. Recursive descent
7 @ Indicate the current object, element
8 ?() Apply a filter (script) expression

Now, I will show with you guys some examples: 1.
Following the above Json example, I want to get name is "Zack" and age is 30 : So, my Json path: $.name and $.age

I want to get Value of hobbies. So:

  • $.hobbies[0] will return value "music"
  • $.hobbies[1] will return value "football"
  • $.hobbies[2] will return value "movies"

I have another example like that: image.png

JSON Path Description

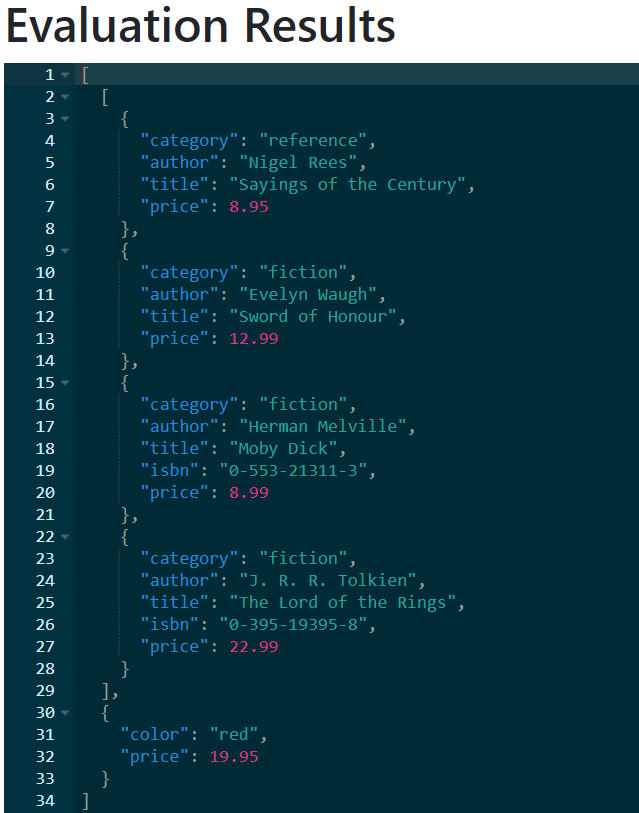

$.store.* All things, both books and bicycles


JSON Path Description

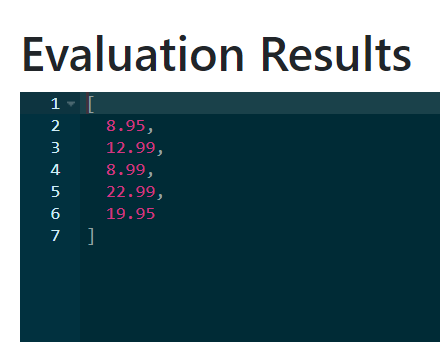

$.store..price The price of everything


JSON Path Description

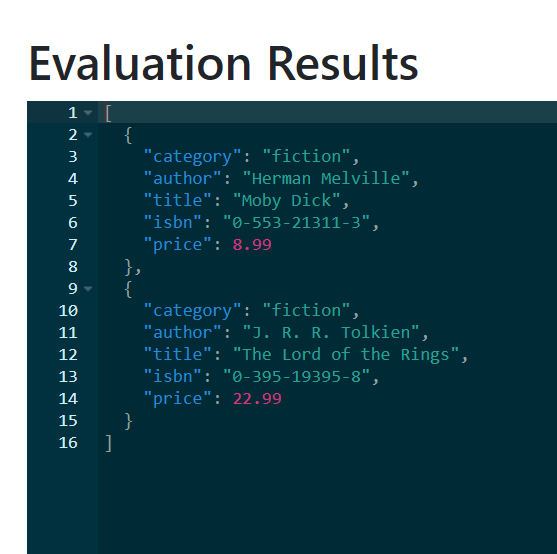

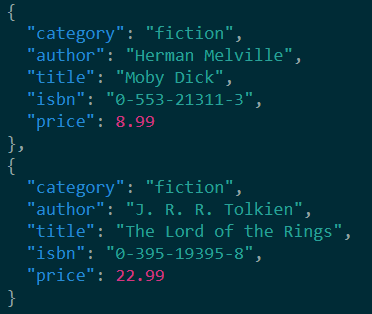

$..book[-2:] The second to last book


JSON Path Description

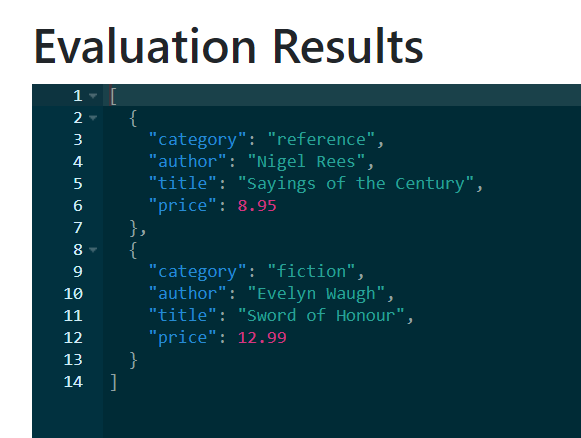

$..book[0,1] The first two books


JSON Path Description

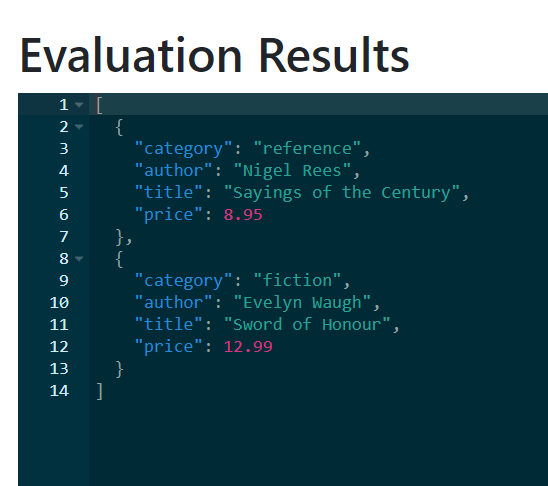

$..book[:2] All books from index 0 (inclusive) until index 2 (exclusive)


JSON Path Description
$..book[1:2] All books from index 1 (inclusive) until index 2 (exclusive)


JSON Path Description
$..book[2:] Book number two from tail


JSON Path Description

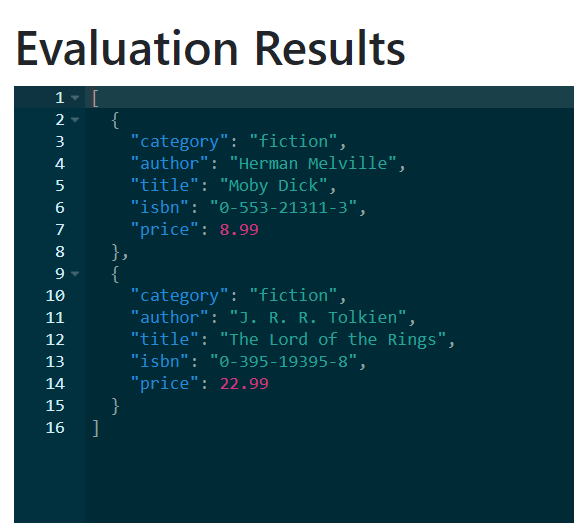

$..book[?(@.isbn)] All books with an ISBN number


JSON Path Description
$..book[?(@.price<10)] All books in store cheaper than 10


JSON Path Description
$..book[?(@.price <= $['expensive'])] All books in store that are not ”expensive”
JSON Path Description
$..book[?(@.author =~ /.*REES/i)] All books matching regex (ignore case)


JSON Path Description
$..* Give me every thing


JSON Path Description
$..book.length() $..book.length()
